openapi: 3.0.0
info:
title: Pancake Webhooks
version: 1.0.0
description: |
Pancake Webhooks allows you to receive real-time HTTP notifications of changes to specific objects in the Pancake system — instead of constantly polling the API.
## How It Works
When an event occurs (e.g. a new message from a customer), Pancake sends an **HTTP POST** request to the endpoint URL you have registered, with a JSON body containing the full details of the event.
---
## Setup Requirements
1. **Create a server endpoint** — Your endpoint must accept HTTP POST requests and return HTTP `200` to acknowledge receipt.
2. **Subscription connections** — Each page that enables the Webhook feature consumes 1 additional connection slot in your Pancake subscription.
**What you need to do:**

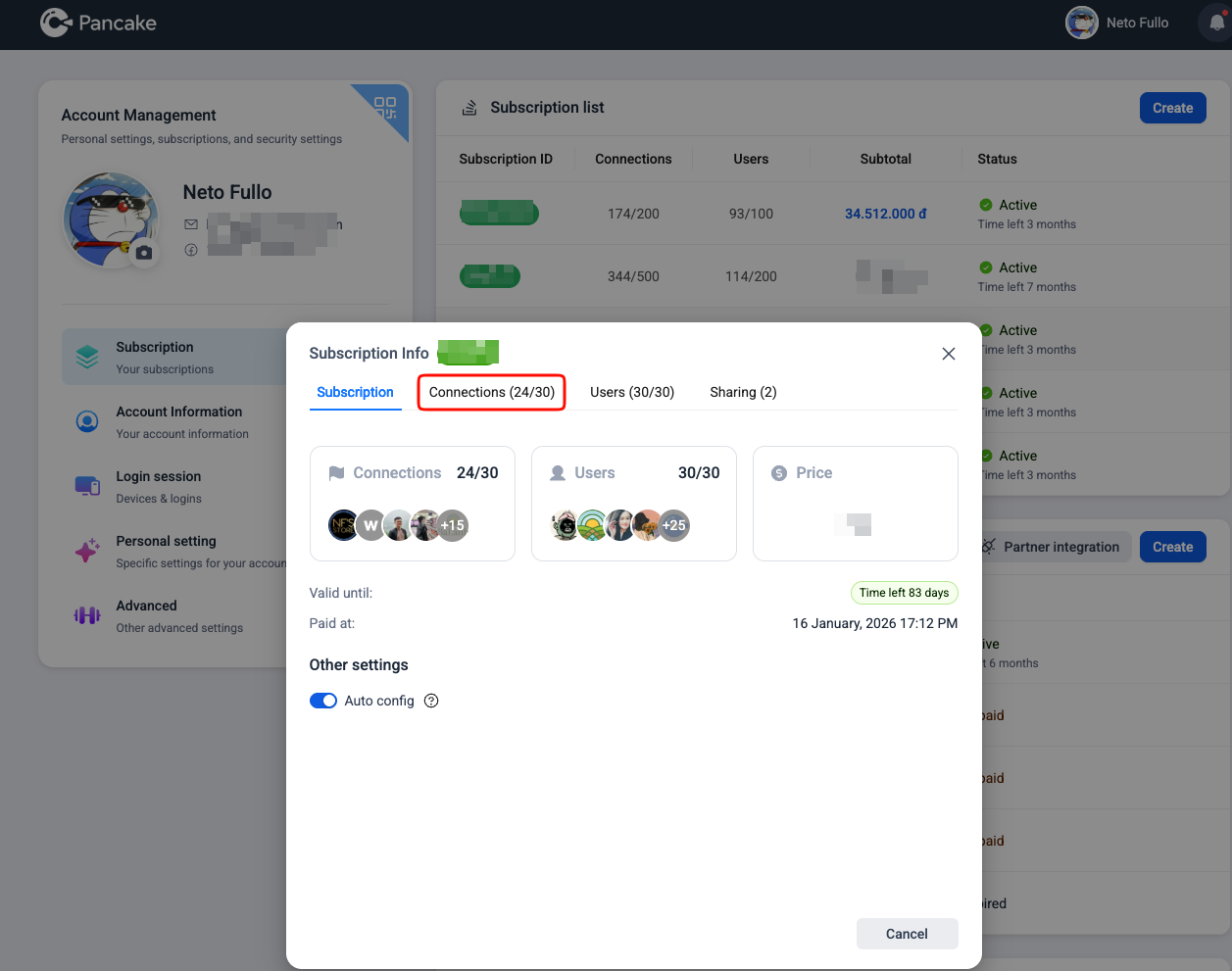

Open your **Subscription settings** and make sure you have at least one free connection slot for each page you want to enable Webhooks on. If you don't have enough, **upgrade your plan or buy more connection slots** first.
> **Example:** If your subscription includes 10 connection slots and you already use 4 pages without Webhooks (4 slots used), enabling Webhooks on 3 of those pages will consume 3 more slots (1 slot per page) — for a total of 7 slots used, leaving 3 slots available.

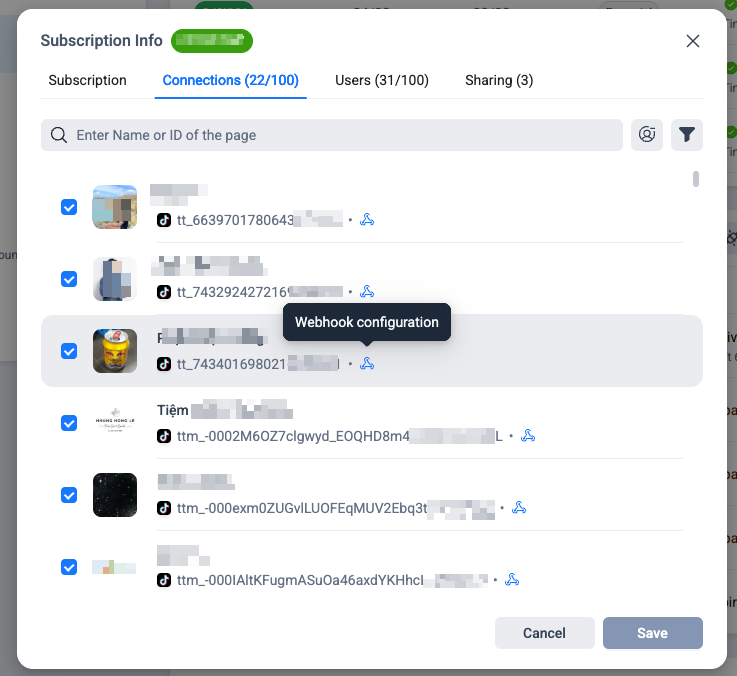

Subscription settingsActivating the Webhook feature for this page will consume 1 additional connection slot from your subscription.

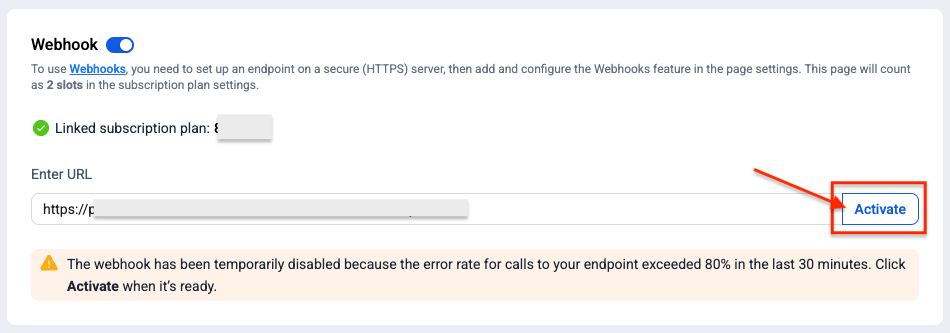

3. **Configure in settings** — Set up the webhook URL in your page's tools settings (requires admin permission).
Verify your endpoint URL
---
## Event Types
| Event | Description |
|-------|-------------|
| [`messaging`](https://developer.pancake.biz/webhook#/webhooks/messaging/post) | Triggered when a new message is received or an existing message is updated in inbox or comments |
| [`conversation`](https://developer.pancake.biz/webhook#/webhooks/conversation/post) | Triggered when a conversation is updated — e.g. assignment, tags, read/seen status, or a new message snippet |
| [`subscription`](https://developer.pancake.biz/webhook#/webhooks/subscription/post) | A Subscription event is used to notify your system whenever there are updates or changes related to users or pages that your app has subscribed to. |
| [`post`](https://developer.pancake.biz/webhook#/webhooks/post/post) | Triggered whenever a post is created or when any of its fields are updated |
| [`connect_status`](https://developer.pancake.biz/webhook#/webhooks/connect_status/post) | Triggered when the page's connection status to the platform changes (e.g. `connected` / `disconnected`) |
---
## Webhook Suspension Due to High Error Rate
To maintain system stability and avoid sending events to unavailable endpoints, Pancake may **temporarily suspend a webhook** when a high error rate is detected.
A webhook will be **automatically suspended** if the following conditions occur **within a 30-minute period**:
- The **error rate exceeds 80%**
- The **total number of failed requests is greater than or equal to 300**
A request is considered **failed** in the following cases:
- The endpoint returns an **HTTP status code outside the 2xx range**
- The endpoint **times out or does not respond**
- A **network connection error** occurs when sending the webhook request
When a webhook is suspended, Pancake will **stop sending webhook events** to the configured endpoint until the webhook is re-enabled.
---
## How to Re-enable the Webhook
To resume receiving webhook events:
1. Ensure your webhook endpoint is **working correctly and can return a valid response**.
2. Log in to **Pancake**.
3. Go to **Webhook Settings**.
4. **Enable the webhook again**.
Once re-enabled, Pancake will continue sending **new webhook events** to your endpoint.
---
## Best Practices for Webhook Endpoints
To avoid webhook suspension and ensure reliable event delivery, we recommend the following:
- **Return HTTP 200 quickly** after receiving the webhook request.
- Process webhook data **asynchronously** (e.g., using a queue or background job).
- Ensure the endpoint response time is **short (preferably under 5 seconds)**.
- Implement **retry-safe (idempotent) processing** in case events are delivered more than once.
- Monitor your endpoint for **availability and error rates**.
Following these practices helps maintain stable webhook integration and prevents automatic suspension.
contact:
name: Pancake Support
url: 'https://www.pancake.biz/contact'
webhooks:
messaging:
post:
summary: Messaging event
description: |
Pancake sends an HTTP POST request to your registered endpoint when a new message is received or updated in inbox/comment.
**Note:** Your endpoint must return HTTP `200` to acknowledge the webhook.
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/WebhookPayload'
example:
page_id: "tt_6711731671916708866"
event_type: "messaging"
data:
conversation:
id: "tt_0:1:6570511458700967938:6711731671916708866"
assignee_ids:
- "62fdbc48-2ad5-4711-9a74-943ca3638386"
from:
id: "tt_6570511458700967938"
name: "Jineo"
is_combined: false
is_removed: false
is_replied: false
read_watermarks: null
seen: false
snippet: "alo abc"
tags: []
type: "INBOX"
message:
id: "tt_7452304119832249857"
conversation_id: "tt_0:1:6570511458700967938:6711731671916708866"
page_id: "tt_6711731671916708866"
message: "alo abc"
original_message: "alo abc"
rich_message: null
type: "INBOX"
inserted_at: "2024-12-25T11:06:07.000000"
from:
id: "tt_6570511458700967938"
name: "Jineo"
page_customer_id: "ddc7b38d-e23a-4bf6-8151-5bfc46105839"
attachments: []
has_phone: false
phone_info: []
is_hidden: false
is_parent: false
is_parent_hidden: false
is_removed: false
like_count: null
user_likes: false
edit_history: null
parent_id: null
private_reply_conversation: null
removed_by: null
show_info: true
can_comment: false
can_hide: false
can_like: false
can_remove: false
can_reply_privately: false
post:
id: "tt_6711731671916708866_7119032578"
page_id: null
message: "trung thu đầu tiên của bé Cơ Cơ. dân chơi 4 đèn 🤣"
type: "COMMENT"
inserted_at: "2023-09-29T16:00:37"
story: null
admin_creator: null
from:
id: "tt_6711731671916708866"
name: "nF store VN"
attachments:
ids:
- "7284278413119032578"
data:
- type: "video"
title: null
description: "trung thu đầu tiên của bé Cơ Cơ"
media:
image:
height: 1024
width: 576
target:
id: "7284278413119032578"
url: "https://v16-webapp-prime.tiktok.com/video/tos"
thumbnail: "https://content.pancake.vn/2-23/2023/9/29/.jpg"
responses:
'200':
description: Your endpoint should return HTTP 200 to confirm the webhook was received successfully.
subscription:
post:
summary: Subscription event
description: |
A **Subscription event** is used to notify your system whenever there are updates or changes related to **users** or **pages** that your app has subscribed to. These events are automatically triggered by the platform and sent to your callback URL. They allow your application to stay in sync with subscription settings.
**Note:** Your endpoint must return HTTP `200` to acknowledge the webhook.
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/SubscriptionWebhookPayload'
example:
event_type: "subscription"
data:
subscription:
accumulated_amount: 20253900000
activated_at: "2024-11-26T03:08:51"
auto_config: false
currency: "VND"
duration: 6
expired_at: "2025-05-25T03:08:48"
id: "A12SDA"
inserted_at: "2024-11-26T03:08:51"
is_activated: true
is_paid: true
owner_id: "6a00ea1f-af2c-4e3e-8f96-46ed462e2243"
page_count: 120
page_ids:
- "In_1660919956"
- "tl_6791248854"
payment_amount: 20253900000
shared_accounts:
- "696cd302-206f-4788-adc3-16f29ddcb646"
type: "pancake"
upgrade_from: null
user_count: 400
user_ids:
- "27f0fa6f-4ae4-4d87-b2a4-4f3ff997af6f"
- "6a00ea1f-af2c-4e3e-8f96-46ed462e2243"
responses:
'200':
description: Your endpoint should return HTTP 200 to confirm the webhook was received successfully.
post:
post:
summary: Post event
description: |
The **Post event webhook** is triggered whenever a post is created or when any of its fields are updated. This webhook returns the full set of post information, including metadata such as the post ID, creation time, author, title, attachments, and any additional story content.
It allows your system to stay synchronized with the latest updates to posts, enabling real-time content tracking, notifications, or content moderation workflows based on post data changes.
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/PostWebhookPayload'
example:
event_type: "post"
page_id: "102816772637000"
data:
post:
admin_creator: null
attachments:
data:
- description: null
media:
image:
height: 720
width: 720
target:
id: "128718770046800"
url: "https://www.facebook.com/1028167.103448482573829/128718770046800/"
title: null
type: "photo"
ids:
- "128718770046800"
target:
id: "128718770046800"
url: "https://www.facebook.com/10281.103448482573829/128718770046800/"
title: null
type: "photo"
from:
id: "102816772637000"
name: "Nước gạo rang"
id: "102816772637000_128718810046796"
inserted_at: "2022-12-15T04:02:01"
message: |-
GẠO LỨT ĐỎ CHO CƠ THỂ KHỎE MẠNH
Được làm từ nguồn nguyên...
story: null
type: "livestream"
responses:
'200':
description: Your endpoint should return HTTP 200 to confirm the webhook was received successfully.
conversation:
post:
summary: Conversation event
description: |
Pancake sends an HTTP POST request to your registered endpoint whenever a conversation is updated — for example, when it is assigned to a staff member, when its tags change, when it is marked as read/seen, or when a new message updates its snippet.
Use the `version` field to discard out-of-order deliveries: only apply an update if its `version` is greater than the last one you processed for that conversation.
**Note:** Your endpoint must return HTTP `200` to acknowledge the webhook.
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/ConversationWebhookPayload'
example:
event_type: "conversation"
page_id: "100000000000001"
request_id: "6d536a7a-0000-0000-0000-000000000000"
timestamp: 1784255208
data:
conversation:
id: "100000000000001_100000000000002"
assignee_ids:
- "22222222-2222-2222-2222-222222222222"
customer_id: "11111111-1111-1111-1111-111111111111"
from:
email: "100000000000002@facebook.com"
id: "100000000000002"
name: "John Doe"
is_combined: false
is_removed: false
is_replied: false
read_watermarks:
- is_group_conv: null
message_id: "m_00000000000000000000000000000000"
psid: "100000000000002"
watermark: 1782552309
seen: true
snippet: "0900000000"
tags: [2, 3, 4]
type: "INBOX"
version: 306
responses:
'200':
description: Your endpoint should return HTTP 200 to confirm the webhook was received successfully.
connect_status:
post:
summary: Page connection status event
description: |
Pancake sends an HTTP POST request to your registered endpoint whenever the **page's connection status** to the underlying platform changes — for example when the page is disconnected and needs to be re-authenticated.
**Note:** Your endpoint must return HTTP `200` to acknowledge the webhook.
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/ConnectStatusWebhookPayload'
example:
event_type: "connect_status"
page_id: "100000000000001"
request_id: "792aab1b-0000-0000-0000-000000000000"
timestamp: 1784255157
data:
connect_status: "disconnected"
page_id: "100000000000001"
responses:
'200':
description: Your endpoint should return HTTP 200 to confirm the webhook was received successfully.
components:
schemas:
WebhookPayload:
type: object
required:
- page_id
- event_type
- data
properties:
page_id:
type: string
description: ID of the Pancake page that triggered the event.
example: "tt_6711731671916708866"
event_type:
type: string
description: Type of event.
enum: [messaging]
example: "messaging"
data:
type: object
description: Detailed data of the event.
properties:
conversation:
$ref: '#/components/schemas/Conversation'
message:
$ref: '#/components/schemas/Message'
post:
$ref: '#/components/schemas/Post'
nullable: true
description: Source post information. Present only when `type` is `COMMENT`, `null` for `INBOX`.
PostWebhookPayload:
type: object
required:
- page_id
- event_type
- data
properties:
page_id:
type: string
description: ID of the Pancake page that triggered the event.
example: "102816772637000"
event_type:
type: string
description: Type of event
enum: [post]
example: "post"
data:
type: object
description: Detailed data of the event.
properties:
post:
$ref: '#/components/schemas/Post'
SubscriptionWebhookPayload:
type: object
required:
- event_type
- data
properties:
event_type:
type: string
description: Type of event
enum: [subscription]
example: "subscription"
data:
type: object
description: Detailed data of the event.
properties:
subscription:
$ref: '#/components/schemas/Subscription'
ConversationWebhookPayload:
type: object
required:
- page_id
- event_type
- data
properties:
event_type:
type: string
description: Type of event.
enum: [conversation]
example: "conversation"
page_id:
type: string
description: ID of the Pancake page that triggered the event.
example: "100000000000001"
request_id:
type: string
description: Unique ID of this webhook delivery, useful for logging and idempotent processing.
example: "6d536a7a-0000-0000-0000-000000000000"
timestamp:
type: integer
format: int64
description: Time the event was sent, as a Unix timestamp in seconds (UTC).
example: 1784255208
data:
type: object
description: Detailed data of the event.
properties:
conversation:
$ref: '#/components/schemas/ConversationEvent'
ConnectStatusWebhookPayload:
type: object
required:
- page_id
- event_type
- data
properties:
event_type:
type: string
description: Type of event.
enum: [connect_status]
example: "connect_status"
page_id:
type: string
description: ID of the Pancake page that triggered the event.
example: "100000000000001"
request_id:
type: string
description: Unique ID of this webhook delivery, useful for logging and idempotent processing.
example: "792aab1b-0000-0000-0000-000000000000"
timestamp:
type: integer
format: int64
description: Time the event was sent, as a Unix timestamp in seconds (UTC).
example: 1784255157
data:
type: object
description: Detailed data of the event.
properties:
connect_status:
type: string
enum: [connected, disconnected]
description: Current connection status of the page to the underlying platform — `connected` or `disconnected`.
example: "disconnected"
page_id:
type: string
description: ID of the page whose connection status changed.
example: "100000000000001"
ConversationEvent:
type: object
description: The conversation that was updated.
properties:
id:
type: string
description: Unique ID of the conversation.
example: "100000000000001_100000000000002"
assignee_ids:
type: array
items:
type: string
description: IDs of assigned staff members. Retrieve details via [GET /pages/{page_id}/users](https://developer.pancake.biz/#/paths/pages-page_id--users/get).
example: ["22222222-2222-2222-2222-222222222222"]
customer_id:
type: string
description: ID of the customer in the conversation. Look up via [GET /pages/{page_id}/page_customers](https://developer.pancake.biz/#/paths/pages-page_id--page_customers/get).
example: "11111111-1111-1111-1111-111111111111"
from:
type: object
description: The customer who initiated the conversation.
properties:
id:
type: string
description: Sender ID.
example: "100000000000002"
name:
type: string
description: Sender display name.
example: "John Doe"
email:
type: string
description: Sender email address.
example: "100000000000002@facebook.com"
is_combined:
type: boolean
description: Whether the conversation involves multiple customers.
example: false
is_removed:
type: boolean
description: Whether the conversation has been deleted.
example: false
is_replied:
type: boolean
description: Whether the conversation has been replied to.
example: false
read_watermarks:
type: array
nullable: true
description: Read markers indicating up to which point each participant has read the conversation.
items:
type: object
properties:
psid:
type: string
description: Page-scoped ID of the participant.
example: "100000000000002"
message_id:
type: string
description: ID of the last message read by the participant.
example: "m_00000000000000000000000000000000"
watermark:
type: integer
format: int64
description: Unix timestamp (seconds) of the read watermark.
example: 1782552309
is_group_conv:
type: boolean
nullable: true
description: Whether this is a group conversation.
example: null
seen:
type: boolean
description: Whether a staff member has viewed the conversation.
example: true
snippet:
type: string
description: Preview text of the latest message.
example: "0900000000"
tags:
type: array
items:
type: integer
description: List of tag IDs attached to the conversation. Retrieve details via [GET /pages/{page_id}/tags](https://developer.pancake.biz/#/paths/pages-page_id--tags/get).
example: [2, 3, 4]
type:
type: string
enum: [INBOX, COMMENT]
description: Conversation type — `INBOX` (direct message) or `COMMENT` (post comment).
example: "INBOX"
version:
type: integer
description: Monotonically increasing version of the conversation. Apply an update only if its `version` is greater than the last one you processed.
example: 306
Subscription:
type: object
description: Subscription details associated with the event.
properties:
accumulated_amount:
type: number
description: Estimated amount of the subscription package
example: 20253900000
payment_amount:
type: number
description: Actual payment amount
example: 20253900000
activated_at:
type: string
format: date-time
description: Activation time (UTC +0)
example: "2024-11-26T03:08:51"
auto_config:
type: boolean
description: Auto-configure subscription package (Should be turned off)
example: false
currency:
type: string
description: Currency unit
example: "VND"
duration:
type: integer
description: Duration of the subscription package (in months)
example: 6
expired_at:
type: string
format: date-time
description: Expiration time (UTC +0)
example: "2025-05-25T03:08:48"
id:
type: string
description: Subscription package ID
example: "XLW21A"
inserted_at:
type: string
format: date-time
description: Creation time (UTC +0)
example: "2024-11-26T03:08:51"
is_activated:
type: boolean
description: Activated status
example: true
is_paid:
type: boolean
description: Payment status
example: true
owner_id:
type: string
description: Subscription owner ID
example: "6a00ea1f-af2c-4e3e-8f96-46ed462e2243"
page_count:
type: integer
description: Number of pages in the package
example: 120
page_ids:
type: array
items:
type: string
description: List of page IDs
example:
- "In_1660919956"
- "tl_6791248854"
user_count:
type: integer
description: Number of users in the package
example: 400
user_ids:
type: array
items:
type: string
description: List of user IDs
example:
- "27f0fa6f-4ae4-4d87-b2a4-4f3ff997af6f"
- "6a00ea1f-af2c-4e3e-8f96-46ed462e2243"
shared_accounts:
type: array
items:
type: string
description: List of IDs of users granted package management access
example:
- "696cd302-206f-4788-adc3-16f29ddcb646"
type:
type: string
description: Type of subscription package
example: "pancake"
upgrade_from:
type: string
nullable: true
description: Upgraded from package ID
example: null
Conversation:
type: object
description: Conversation associated with the event.
properties:
id:
type: string
description: Unique ID of the conversation.
example: "tt_0:1:6570511458700967938:6711731671916708866"
assignee_ids:
type: array
items:
type: string
description: IDs of assigned staff members. Retrieve details via [GET /pages/{page_id}/users](https://developer.pancake.biz/#/paths/pages-page_id--users/get).
example: ["62fdbc48-2ad5-4711-9a74-943ca3638386"]
from:
type: object
description: The customer who initiated the conversation.
properties:
id:
type: string
description: Sender ID.
example: "tt_6570511458700967938"
name:
type: string
description: Sender display name.
example: "Jineo"
is_combined:
type: boolean
description: Whether the conversation involves multiple customers.
example: false
is_removed:
type: boolean
description: Whether the conversation has been deleted.
example: false
is_replied:
type: boolean
description: Whether the conversation has been replied to.
example: false
read_watermarks:
type: object
nullable: true
description: Timestamp of the last time the customer viewed the messages.
seen:
type: boolean
description: Whether a staff member has viewed the conversation.
example: false
snippet:
type: string
description: Preview text of the latest message.
example: "alo abc"
tags:
type: array
items:
type: integer
description: List of tag IDs attached to the conversation. Retrieve details via [GET /pages/{page_id}/tags](https://developer.pancake.biz/#/paths/pages-page_id--tags/get).
example: []
type:
type: string
enum: [INBOX, COMMENT]
description: Conversation type — `INBOX` (direct message) or `COMMENT` (post comment).
example: "INBOX"
Message:
type: object
description: Details of the message.
properties:
id:
type: string
description: Unique ID of the message.
example: "tt_7452304119832249857"
conversation_id:
type: string
description: ID of the conversation this message belongs to.
example: "tt_0:1:6570511458700967938:6711731671916708866"
page_id:
type: string
description: ID of the associated page.
example: "tt_6711731671916708866"
message:
type: string
description: Text content of the message.
example: "alo abc"
original_message:
type: string
description: Original content before any edits.
example: "alo abc"
rich_message:
type: object
nullable: true
description: Formatted message content, if applicable.
type:
type: string
enum: [INBOX, COMMENT]
description: Message type — `INBOX` or `COMMENT`.
example: "INBOX"
inserted_at:
type: string
format: date-time
description: Message creation timestamp (UTC).
example: "2024-12-25T11:06:07.000000"
from:
type: object
description: Sender of the message.
properties:
id:
type: string
description: Sender ID.
example: "tt_6570511458700967938"
name:
type: string
description: Sender display name.
example: "Jineo"
page_customer_id:
type: string
description: Customer ID within the Pancake platform. Use to look up via [GET /pages/{page_id}/page_customers](https://developer.pancake.biz/#/paths/pages-page_id--page_customers/get).
example: "ddc7b38d-e23a-4bf6-8151-5bfc46105839"
attachments:
type: array
items:
type: object
description: List of attached files (images, videos, documents, etc.).
example: []
has_phone:
type: boolean
description: Whether the message contains a phone number.
example: false
phone_info:
type: array
items:
type: object
description: Details of phone numbers detected in the message.
example: []
is_hidden:
type: boolean
description: Whether the message is hidden. (COMMENT only)
example: false
is_parent:
type: boolean
description: Whether this is the root message of a comment thread.
example: false
is_parent_hidden:
type: boolean
description: Whether the parent message is hidden.
example: false
is_removed:
type: boolean
description: Whether the message has been deleted.
example: false
like_count:
type: integer
nullable: true
description: Number of likes on the message. (COMMENT only)
example: null
user_likes:
type: boolean
description: Whether the page has liked this message. (COMMENT only)
example: false
edit_history:
type: object
nullable: true
description: Edit history of the message, if any.
parent_id:
type: string
nullable: true
description: ID of the parent message if this is a reply in a comment thread.
example: null
private_reply_conversation:
type: object
nullable: true
description: Private conversation created from replying to a comment, if any.
removed_by:
type: string
nullable: true
description: ID of the user who deleted the message, if applicable.
example: null
show_info:
type: boolean
description: Whether sender information is displayed in the UI.
example: true
can_comment:
type: boolean
description: Whether this comment can be replied to. (COMMENT only)
example: false
can_hide:
type: boolean
description: Whether this comment can be hidden. (COMMENT only)
example: false
can_like:
type: boolean
description: Whether this comment can be liked. (COMMENT only)
example: false
can_remove:
type: boolean
description: Whether this comment can be deleted. (COMMENT only)
example: false
can_reply_privately:
type: boolean
description: Whether a private message can be sent to the commenter. (COMMENT only)
example: false
Post:
type: object
nullable: true
description: Source post information. Only present when the message type is COMMENT.
properties:
id:
type: string
description: Unique ID of the post.
example: "tt_6711731671916708866_7119032578"
message:
type: string
description: Content of the post.
example: "trung thu đầu tiên của bé Cơ Cơ. dân chơi 4 đèn 🤣"
type:
type: string
description: Type of post.
example: "livestream"
inserted_at:
type: string
format: date-time
description: Post creation timestamp.
example: "2023-09-29T16:00:37"
story:
type: object
nullable: true
description: Story information, if the post is a story.
admin_creator:
type: object
nullable: true
description: Admin who created the post, if applicable.
from:
type: object
description: The page that published the post.
properties:
id:
type: string
description: Page ID.
example: "tt_6711731671916708866"
name:
type: string
description: Page name.
example: "nF store VN"
attachments:
type: object
description: Attachments of the post.
properties:
ids:
type: array
items:
type: string
description: List of attachment IDs.
example: ["7284278413119032578"]
data:
type: array
description: Detailed information for each attachment.
items:
type: object
properties:
type:
type: string
description: File type (video, photo, etc.).
example: "video"
title:
type: string
nullable: true
description: File title.
description:
type: string
description: File description.
example: "trung thu đầu tiên của bé Cơ Cơ"
media:
type: object
description: Media dimensions.
properties:
image:
type: object
properties:
height:
type: integer
example: 1024
width:
type: integer
example: 576
target:
type: object
description: File access URLs.
properties:
id:
type: string
example: "7284278413119032578"
url:
type: string
example: "https://v16-webapp-prime.tiktok.com/video/tos"
thumbnail:
type: string
description: Thumbnail image URL.
example: "https://content.pancake.vn/2-23/2023/9/29/.jpg"
---
## Best Practices for Webhook Endpoints
To avoid webhook suspension and ensure reliable event delivery, we recommend the following:
- **Return HTTP 200 quickly** after receiving the webhook request.
- Process webhook data **asynchronously** (e.g., using a queue or background job).
- Ensure the endpoint response time is **short (preferably under 5 seconds)**.
- Implement **retry-safe (idempotent) processing** in case events are delivered more than once.
- Monitor your endpoint for **availability and error rates**.
Following these practices helps maintain stable webhook integration and prevents automatic suspension.
contact:
name: Pancake Support
url: 'https://www.pancake.biz/contact'
webhooks:
messaging:
post:
summary: Messaging event
description: |
Pancake sends an HTTP POST request to your registered endpoint when a new message is received or updated in inbox/comment.
**Note:** Your endpoint must return HTTP `200` to acknowledge the webhook.
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/WebhookPayload'
example:
page_id: "tt_6711731671916708866"
event_type: "messaging"
data:
conversation:
id: "tt_0:1:6570511458700967938:6711731671916708866"
assignee_ids:
- "62fdbc48-2ad5-4711-9a74-943ca3638386"
from:
id: "tt_6570511458700967938"
name: "Jineo"
is_combined: false
is_removed: false
is_replied: false
read_watermarks: null
seen: false
snippet: "alo abc"
tags: []
type: "INBOX"
message:
id: "tt_7452304119832249857"
conversation_id: "tt_0:1:6570511458700967938:6711731671916708866"
page_id: "tt_6711731671916708866"
message: "alo abc"
original_message: "alo abc"
rich_message: null
type: "INBOX"
inserted_at: "2024-12-25T11:06:07.000000"
from:
id: "tt_6570511458700967938"
name: "Jineo"
page_customer_id: "ddc7b38d-e23a-4bf6-8151-5bfc46105839"
attachments: []
has_phone: false
phone_info: []
is_hidden: false
is_parent: false
is_parent_hidden: false
is_removed: false
like_count: null
user_likes: false
edit_history: null
parent_id: null
private_reply_conversation: null
removed_by: null
show_info: true
can_comment: false
can_hide: false
can_like: false
can_remove: false
can_reply_privately: false
post:
id: "tt_6711731671916708866_7119032578"
page_id: null
message: "trung thu đầu tiên của bé Cơ Cơ. dân chơi 4 đèn 🤣"
type: "COMMENT"
inserted_at: "2023-09-29T16:00:37"
story: null
admin_creator: null
from:
id: "tt_6711731671916708866"
name: "nF store VN"
attachments:
ids:
- "7284278413119032578"
data:
- type: "video"
title: null
description: "trung thu đầu tiên của bé Cơ Cơ"
media:
image:
height: 1024
width: 576
target:
id: "7284278413119032578"
url: "https://v16-webapp-prime.tiktok.com/video/tos"
thumbnail: "https://content.pancake.vn/2-23/2023/9/29/.jpg"
responses:
'200':
description: Your endpoint should return HTTP 200 to confirm the webhook was received successfully.
subscription:
post:
summary: Subscription event
description: |
A **Subscription event** is used to notify your system whenever there are updates or changes related to **users** or **pages** that your app has subscribed to. These events are automatically triggered by the platform and sent to your callback URL. They allow your application to stay in sync with subscription settings.
**Note:** Your endpoint must return HTTP `200` to acknowledge the webhook.
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/SubscriptionWebhookPayload'
example:
event_type: "subscription"
data:
subscription:
accumulated_amount: 20253900000
activated_at: "2024-11-26T03:08:51"
auto_config: false
currency: "VND"
duration: 6
expired_at: "2025-05-25T03:08:48"
id: "A12SDA"
inserted_at: "2024-11-26T03:08:51"
is_activated: true
is_paid: true
owner_id: "6a00ea1f-af2c-4e3e-8f96-46ed462e2243"
page_count: 120
page_ids:
- "In_1660919956"
- "tl_6791248854"
payment_amount: 20253900000
shared_accounts:
- "696cd302-206f-4788-adc3-16f29ddcb646"
type: "pancake"
upgrade_from: null
user_count: 400
user_ids:
- "27f0fa6f-4ae4-4d87-b2a4-4f3ff997af6f"
- "6a00ea1f-af2c-4e3e-8f96-46ed462e2243"
responses:
'200':
description: Your endpoint should return HTTP 200 to confirm the webhook was received successfully.
post:
post:
summary: Post event
description: |
The **Post event webhook** is triggered whenever a post is created or when any of its fields are updated. This webhook returns the full set of post information, including metadata such as the post ID, creation time, author, title, attachments, and any additional story content.
It allows your system to stay synchronized with the latest updates to posts, enabling real-time content tracking, notifications, or content moderation workflows based on post data changes.
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/PostWebhookPayload'
example:
event_type: "post"
page_id: "102816772637000"
data:
post:
admin_creator: null
attachments:
data:
- description: null
media:
image:
height: 720
width: 720
target:
id: "128718770046800"
url: "https://www.facebook.com/1028167.103448482573829/128718770046800/"
title: null
type: "photo"
ids:
- "128718770046800"
target:
id: "128718770046800"
url: "https://www.facebook.com/10281.103448482573829/128718770046800/"
title: null
type: "photo"
from:
id: "102816772637000"
name: "Nước gạo rang"
id: "102816772637000_128718810046796"
inserted_at: "2022-12-15T04:02:01"
message: |-
GẠO LỨT ĐỎ CHO CƠ THỂ KHỎE MẠNH
Được làm từ nguồn nguyên...
story: null
type: "livestream"
responses:
'200':
description: Your endpoint should return HTTP 200 to confirm the webhook was received successfully.
conversation:
post:
summary: Conversation event
description: |
Pancake sends an HTTP POST request to your registered endpoint whenever a conversation is updated — for example, when it is assigned to a staff member, when its tags change, when it is marked as read/seen, or when a new message updates its snippet.
Use the `version` field to discard out-of-order deliveries: only apply an update if its `version` is greater than the last one you processed for that conversation.
**Note:** Your endpoint must return HTTP `200` to acknowledge the webhook.
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/ConversationWebhookPayload'
example:
event_type: "conversation"
page_id: "100000000000001"
request_id: "6d536a7a-0000-0000-0000-000000000000"
timestamp: 1784255208
data:
conversation:
id: "100000000000001_100000000000002"
assignee_ids:
- "22222222-2222-2222-2222-222222222222"
customer_id: "11111111-1111-1111-1111-111111111111"
from:
email: "100000000000002@facebook.com"
id: "100000000000002"
name: "John Doe"
is_combined: false
is_removed: false
is_replied: false
read_watermarks:
- is_group_conv: null
message_id: "m_00000000000000000000000000000000"
psid: "100000000000002"
watermark: 1782552309
seen: true
snippet: "0900000000"
tags: [2, 3, 4]
type: "INBOX"
version: 306
responses:
'200':
description: Your endpoint should return HTTP 200 to confirm the webhook was received successfully.
connect_status:
post:
summary: Page connection status event
description: |
Pancake sends an HTTP POST request to your registered endpoint whenever the **page's connection status** to the underlying platform changes — for example when the page is disconnected and needs to be re-authenticated.
**Note:** Your endpoint must return HTTP `200` to acknowledge the webhook.
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/ConnectStatusWebhookPayload'
example:
event_type: "connect_status"
page_id: "100000000000001"
request_id: "792aab1b-0000-0000-0000-000000000000"
timestamp: 1784255157
data:
connect_status: "disconnected"
page_id: "100000000000001"
responses:
'200':
description: Your endpoint should return HTTP 200 to confirm the webhook was received successfully.
components:
schemas:
WebhookPayload:
type: object
required:
- page_id
- event_type
- data
properties:
page_id:
type: string
description: ID of the Pancake page that triggered the event.
example: "tt_6711731671916708866"
event_type:
type: string
description: Type of event.
enum: [messaging]
example: "messaging"
data:
type: object
description: Detailed data of the event.
properties:
conversation:
$ref: '#/components/schemas/Conversation'
message:
$ref: '#/components/schemas/Message'
post:
$ref: '#/components/schemas/Post'
nullable: true
description: Source post information. Present only when `type` is `COMMENT`, `null` for `INBOX`.
PostWebhookPayload:
type: object
required:
- page_id
- event_type
- data
properties:
page_id:
type: string
description: ID of the Pancake page that triggered the event.
example: "102816772637000"
event_type:
type: string
description: Type of event
enum: [post]
example: "post"
data:
type: object
description: Detailed data of the event.
properties:
post:
$ref: '#/components/schemas/Post'
SubscriptionWebhookPayload:
type: object
required:
- event_type
- data
properties:
event_type:
type: string
description: Type of event
enum: [subscription]
example: "subscription"
data:
type: object
description: Detailed data of the event.
properties:
subscription:
$ref: '#/components/schemas/Subscription'
ConversationWebhookPayload:
type: object
required:
- page_id
- event_type
- data
properties:
event_type:
type: string
description: Type of event.
enum: [conversation]
example: "conversation"
page_id:
type: string
description: ID of the Pancake page that triggered the event.
example: "100000000000001"
request_id:
type: string
description: Unique ID of this webhook delivery, useful for logging and idempotent processing.
example: "6d536a7a-0000-0000-0000-000000000000"
timestamp:
type: integer
format: int64
description: Time the event was sent, as a Unix timestamp in seconds (UTC).
example: 1784255208
data:
type: object
description: Detailed data of the event.
properties:
conversation:
$ref: '#/components/schemas/ConversationEvent'
ConnectStatusWebhookPayload:
type: object
required:
- page_id
- event_type
- data
properties:
event_type:
type: string
description: Type of event.
enum: [connect_status]
example: "connect_status"
page_id:
type: string
description: ID of the Pancake page that triggered the event.
example: "100000000000001"
request_id:
type: string
description: Unique ID of this webhook delivery, useful for logging and idempotent processing.
example: "792aab1b-0000-0000-0000-000000000000"
timestamp:
type: integer
format: int64
description: Time the event was sent, as a Unix timestamp in seconds (UTC).
example: 1784255157
data:
type: object
description: Detailed data of the event.
properties:
connect_status:
type: string
enum: [connected, disconnected]
description: Current connection status of the page to the underlying platform — `connected` or `disconnected`.
example: "disconnected"
page_id:
type: string
description: ID of the page whose connection status changed.
example: "100000000000001"
ConversationEvent:
type: object
description: The conversation that was updated.
properties:
id:
type: string
description: Unique ID of the conversation.
example: "100000000000001_100000000000002"
assignee_ids:
type: array
items:
type: string
description: IDs of assigned staff members. Retrieve details via [GET /pages/{page_id}/users](https://developer.pancake.biz/#/paths/pages-page_id--users/get).
example: ["22222222-2222-2222-2222-222222222222"]
customer_id:
type: string
description: ID of the customer in the conversation. Look up via [GET /pages/{page_id}/page_customers](https://developer.pancake.biz/#/paths/pages-page_id--page_customers/get).
example: "11111111-1111-1111-1111-111111111111"
from:
type: object
description: The customer who initiated the conversation.
properties:
id:
type: string
description: Sender ID.
example: "100000000000002"
name:
type: string
description: Sender display name.
example: "John Doe"
email:
type: string
description: Sender email address.
example: "100000000000002@facebook.com"
is_combined:
type: boolean
description: Whether the conversation involves multiple customers.
example: false
is_removed:
type: boolean
description: Whether the conversation has been deleted.
example: false
is_replied:
type: boolean
description: Whether the conversation has been replied to.
example: false
read_watermarks:
type: array
nullable: true
description: Read markers indicating up to which point each participant has read the conversation.
items:
type: object
properties:
psid:
type: string
description: Page-scoped ID of the participant.
example: "100000000000002"
message_id:
type: string
description: ID of the last message read by the participant.
example: "m_00000000000000000000000000000000"
watermark:
type: integer
format: int64
description: Unix timestamp (seconds) of the read watermark.
example: 1782552309
is_group_conv:
type: boolean
nullable: true
description: Whether this is a group conversation.
example: null
seen:
type: boolean
description: Whether a staff member has viewed the conversation.
example: true
snippet:
type: string
description: Preview text of the latest message.
example: "0900000000"
tags:
type: array
items:
type: integer
description: List of tag IDs attached to the conversation. Retrieve details via [GET /pages/{page_id}/tags](https://developer.pancake.biz/#/paths/pages-page_id--tags/get).
example: [2, 3, 4]
type:
type: string
enum: [INBOX, COMMENT]
description: Conversation type — `INBOX` (direct message) or `COMMENT` (post comment).
example: "INBOX"
version:
type: integer
description: Monotonically increasing version of the conversation. Apply an update only if its `version` is greater than the last one you processed.
example: 306
Subscription:
type: object
description: Subscription details associated with the event.
properties:
accumulated_amount:
type: number
description: Estimated amount of the subscription package
example: 20253900000
payment_amount:
type: number
description: Actual payment amount
example: 20253900000
activated_at:
type: string
format: date-time
description: Activation time (UTC +0)
example: "2024-11-26T03:08:51"
auto_config:
type: boolean
description: Auto-configure subscription package (Should be turned off)
example: false
currency:
type: string
description: Currency unit
example: "VND"
duration:
type: integer
description: Duration of the subscription package (in months)
example: 6
expired_at:
type: string
format: date-time
description: Expiration time (UTC +0)
example: "2025-05-25T03:08:48"
id:
type: string
description: Subscription package ID
example: "XLW21A"
inserted_at:
type: string
format: date-time
description: Creation time (UTC +0)
example: "2024-11-26T03:08:51"
is_activated:
type: boolean
description: Activated status
example: true
is_paid:
type: boolean
description: Payment status
example: true
owner_id:
type: string
description: Subscription owner ID
example: "6a00ea1f-af2c-4e3e-8f96-46ed462e2243"
page_count:
type: integer
description: Number of pages in the package
example: 120
page_ids:
type: array
items:
type: string
description: List of page IDs
example:
- "In_1660919956"
- "tl_6791248854"
user_count:
type: integer
description: Number of users in the package
example: 400
user_ids:
type: array
items:
type: string
description: List of user IDs
example:
- "27f0fa6f-4ae4-4d87-b2a4-4f3ff997af6f"
- "6a00ea1f-af2c-4e3e-8f96-46ed462e2243"
shared_accounts:
type: array
items:
type: string
description: List of IDs of users granted package management access
example:
- "696cd302-206f-4788-adc3-16f29ddcb646"
type:
type: string
description: Type of subscription package
example: "pancake"
upgrade_from:
type: string
nullable: true
description: Upgraded from package ID
example: null
Conversation:
type: object
description: Conversation associated with the event.
properties:
id:
type: string
description: Unique ID of the conversation.
example: "tt_0:1:6570511458700967938:6711731671916708866"
assignee_ids:
type: array
items:
type: string
description: IDs of assigned staff members. Retrieve details via [GET /pages/{page_id}/users](https://developer.pancake.biz/#/paths/pages-page_id--users/get).
example: ["62fdbc48-2ad5-4711-9a74-943ca3638386"]
from:
type: object
description: The customer who initiated the conversation.
properties:
id:
type: string
description: Sender ID.
example: "tt_6570511458700967938"
name:
type: string
description: Sender display name.
example: "Jineo"
is_combined:
type: boolean
description: Whether the conversation involves multiple customers.
example: false
is_removed:
type: boolean
description: Whether the conversation has been deleted.
example: false
is_replied:
type: boolean
description: Whether the conversation has been replied to.
example: false
read_watermarks:
type: object
nullable: true
description: Timestamp of the last time the customer viewed the messages.
seen:
type: boolean
description: Whether a staff member has viewed the conversation.
example: false
snippet:
type: string
description: Preview text of the latest message.
example: "alo abc"
tags:
type: array
items:
type: integer
description: List of tag IDs attached to the conversation. Retrieve details via [GET /pages/{page_id}/tags](https://developer.pancake.biz/#/paths/pages-page_id--tags/get).
example: []
type:
type: string
enum: [INBOX, COMMENT]
description: Conversation type — `INBOX` (direct message) or `COMMENT` (post comment).
example: "INBOX"
Message:
type: object
description: Details of the message.
properties:
id:
type: string
description: Unique ID of the message.
example: "tt_7452304119832249857"
conversation_id:
type: string
description: ID of the conversation this message belongs to.
example: "tt_0:1:6570511458700967938:6711731671916708866"
page_id:
type: string
description: ID of the associated page.
example: "tt_6711731671916708866"
message:
type: string
description: Text content of the message.
example: "alo abc"
original_message:
type: string
description: Original content before any edits.
example: "alo abc"
rich_message:
type: object
nullable: true
description: Formatted message content, if applicable.
type:
type: string
enum: [INBOX, COMMENT]
description: Message type — `INBOX` or `COMMENT`.
example: "INBOX"
inserted_at:
type: string
format: date-time
description: Message creation timestamp (UTC).
example: "2024-12-25T11:06:07.000000"
from:
type: object
description: Sender of the message.
properties:
id:
type: string
description: Sender ID.
example: "tt_6570511458700967938"
name:
type: string
description: Sender display name.
example: "Jineo"
page_customer_id:
type: string
description: Customer ID within the Pancake platform. Use to look up via [GET /pages/{page_id}/page_customers](https://developer.pancake.biz/#/paths/pages-page_id--page_customers/get).
example: "ddc7b38d-e23a-4bf6-8151-5bfc46105839"
attachments:
type: array
items:
type: object
description: List of attached files (images, videos, documents, etc.).
example: []
has_phone:
type: boolean
description: Whether the message contains a phone number.
example: false
phone_info:
type: array
items:
type: object
description: Details of phone numbers detected in the message.
example: []
is_hidden:
type: boolean
description: Whether the message is hidden. (COMMENT only)
example: false
is_parent:
type: boolean
description: Whether this is the root message of a comment thread.
example: false
is_parent_hidden:
type: boolean
description: Whether the parent message is hidden.
example: false
is_removed:
type: boolean
description: Whether the message has been deleted.
example: false
like_count:
type: integer
nullable: true
description: Number of likes on the message. (COMMENT only)
example: null
user_likes:
type: boolean
description: Whether the page has liked this message. (COMMENT only)
example: false
edit_history:
type: object
nullable: true
description: Edit history of the message, if any.
parent_id:
type: string
nullable: true
description: ID of the parent message if this is a reply in a comment thread.
example: null
private_reply_conversation:
type: object
nullable: true
description: Private conversation created from replying to a comment, if any.
removed_by:
type: string
nullable: true
description: ID of the user who deleted the message, if applicable.
example: null
show_info:
type: boolean
description: Whether sender information is displayed in the UI.
example: true
can_comment:
type: boolean
description: Whether this comment can be replied to. (COMMENT only)
example: false
can_hide:
type: boolean
description: Whether this comment can be hidden. (COMMENT only)
example: false
can_like:
type: boolean
description: Whether this comment can be liked. (COMMENT only)
example: false
can_remove:
type: boolean
description: Whether this comment can be deleted. (COMMENT only)
example: false
can_reply_privately:
type: boolean
description: Whether a private message can be sent to the commenter. (COMMENT only)
example: false
Post:
type: object
nullable: true
description: Source post information. Only present when the message type is COMMENT.
properties:
id:
type: string
description: Unique ID of the post.
example: "tt_6711731671916708866_7119032578"
message:
type: string
description: Content of the post.
example: "trung thu đầu tiên của bé Cơ Cơ. dân chơi 4 đèn 🤣"
type:
type: string
description: Type of post.
example: "livestream"
inserted_at:
type: string
format: date-time
description: Post creation timestamp.
example: "2023-09-29T16:00:37"
story:
type: object
nullable: true
description: Story information, if the post is a story.
admin_creator:
type: object
nullable: true
description: Admin who created the post, if applicable.
from:
type: object
description: The page that published the post.
properties:
id:
type: string
description: Page ID.
example: "tt_6711731671916708866"
name:
type: string
description: Page name.
example: "nF store VN"
attachments:
type: object
description: Attachments of the post.
properties:
ids:
type: array
items:
type: string
description: List of attachment IDs.
example: ["7284278413119032578"]
data:
type: array
description: Detailed information for each attachment.
items:
type: object
properties:
type:
type: string
description: File type (video, photo, etc.).
example: "video"
title:
type: string
nullable: true
description: File title.
description:
type: string
description: File description.
example: "trung thu đầu tiên của bé Cơ Cơ"
media:
type: object
description: Media dimensions.
properties:
image:
type: object
properties:
height:
type: integer
example: 1024
width:
type: integer
example: 576
target:
type: object
description: File access URLs.
properties:
id:
type: string
example: "7284278413119032578"
url:
type: string
example: "https://v16-webapp-prime.tiktok.com/video/tos"
thumbnail:
type: string
description: Thumbnail image URL.
example: "https://content.pancake.vn/2-23/2023/9/29/.jpg"
